Alvis

CVRT (Combat Vehicle Reconnaissance Tracked) Samson Armoured Recovery Vehicle

Engine: Cummins BTA 5.9lt Turbo diesel engine
Body type: Tracked Armoured Recovery Vehicle
Tyre size: Steel, Live Track, Rubber Padded
Mileage: 508
Vehicle Hours: 3220
Engine Hours: 959
Condition: Very Good

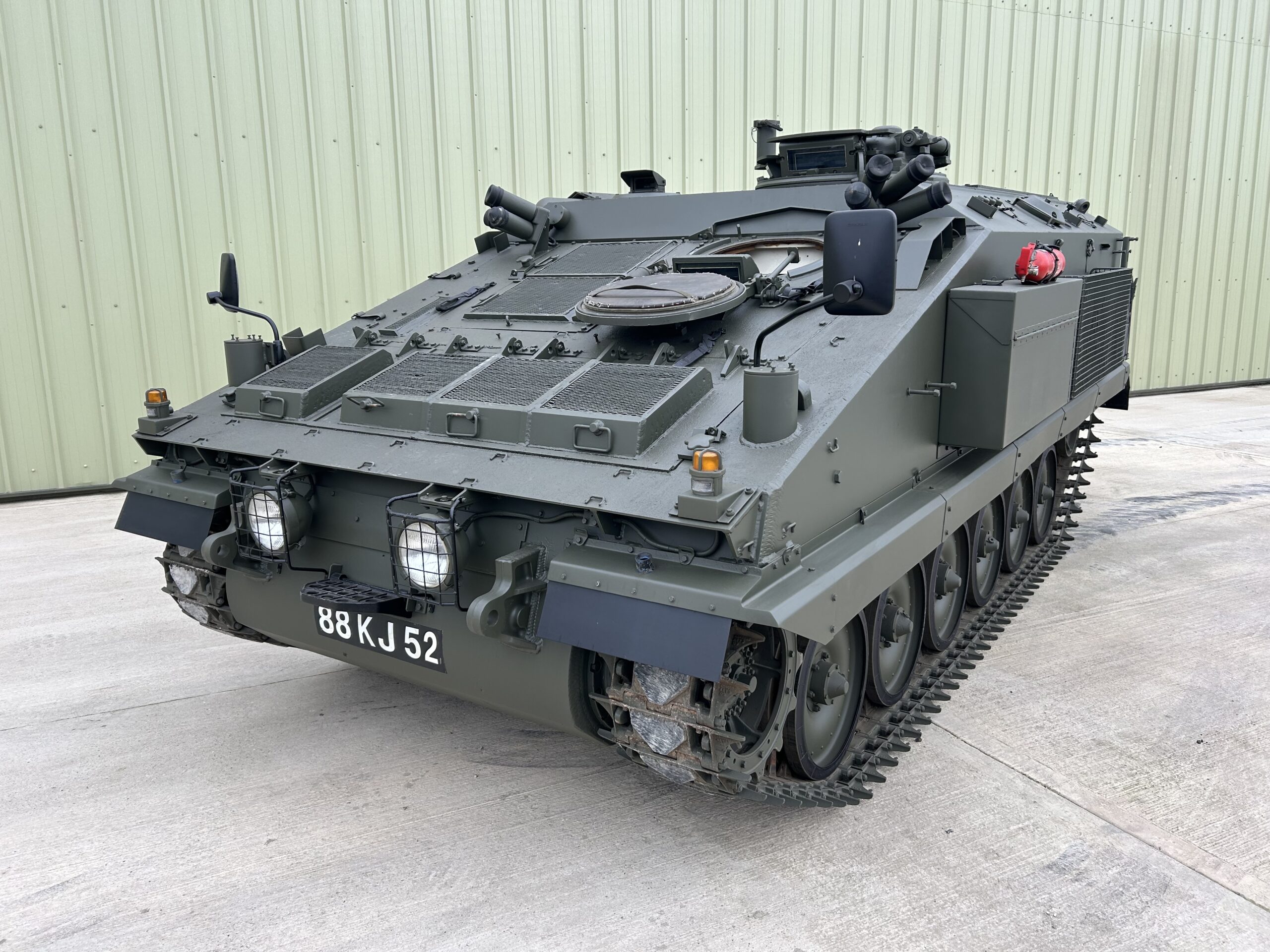

Direct from the UK MoD, Alvis CVRT Samson Armoured Recovery Vehicle (ARV) fitted Cummins 190hp turbo diesel, David Brown TN 15 semi-automatic gear box, 7 speed forward / 7 speed reverse, neutral turn facility, 24v electrics, approximately 50mph top speed, steel tracks with rubber pads, torsion bar suspension with dampers and adjustment, etc, Rear earth anchor and recovery winch, smoke dischargers, commanders turret with gun mount socket, crew seats with belts, roof storage box etc.

The FV106 Samson is a tracked armoured recovery vehicle of the British Army. It was developed as the ARV variant of the CVRT family. Crew positions are available for three and fitted with a 3.5T capstan winch that can also be utilised in a lifting configuration. With suitable equipment a 4:1 mechanical advantage is capable with 228m of winch rope. This winch is capable of recovering up to 12 Tonnes of vehicle. A manually operated earth anchor is situated at the rear to anchor the vehicle to secure the vehicle while winching operations are carried out.

This is the upgraded version with Cummins diesel engine and uprated gearbox. The chassis and suspension of the Samson is shared with all other members of the CVRT family. The aluminium hull on the Samson is able to accommodate the driver, recovery operator and the vehicle commander who also operates the 7.62-mm MG which can be mounted over his cupola. Please note – this is not fitted or supplied.

It features:
Engine: Cummins BTA 5.9lt Turbo diesel engine
Engine: power 195 hp
David Brown TN15e Epicyclic Semi-Automatic Gearbox with Neutral turn capability.

Mobility
Maximum road speed 72 km/h
Range 750 km

Manoeuvrability

Gradient 60%
Side slope 35%
Vertical step 0.5 m
Trench 2 m
Fording 1 m

Dimensions and weight (Approx.)
Weight 8.7 t
Length 5.12 m
Width 2.13 m
Height 2.8 m

This Vehicle starts on the button, all levels checked (Gearbox, final drives, hubs etc), steam cleaned and valeted and is now ready for sale.

Export enquiries welcome

Our Ref: W13211

Alvis Stormer TRV (Troop Reconnaissance Vehicle) in fantastic condition, with apparently very little use since full base overhaul. Finding an example in this condition available for sale is now virtually impossible.

The Alvis Stormer is a modern military armoured vehicle which was manufactured by Alvis Vickers, now part of BAE Systems Global Combat Systems.

The Stormer vehicle was developed to provide a mobile platform for the Starstreak High Velocity Missile (HVM) system for detachment level protection and excellent mobility with eight ready to fire missiles and a further nine stowed inside.

The HVM system is a low level Close Air Defence (CAD) system with a rapid engagement capacity developed and optimised to counter the Attack Helicopter threat.

This is the Troop Reconnaissance variant of the platform, having never been fitted with a launcher, but used in command and control of the Battery.

The Stormer is a development of the CVR(T) family of vehicles (Scorpion, Scimitar, Spartan etc.), essentially a larger, modernised version with an extra road-wheel on each side.
