MoD

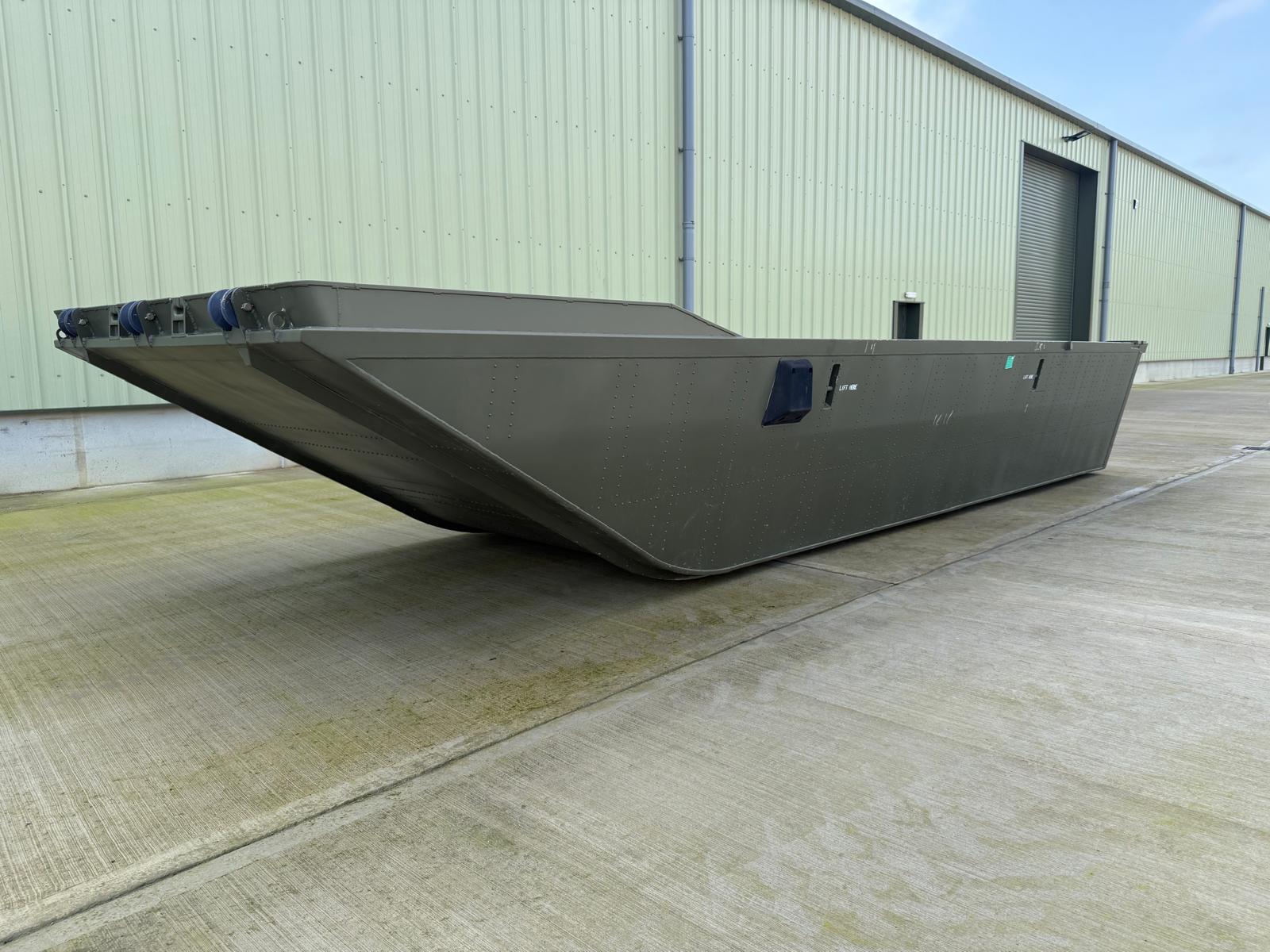

Direct from release with UK MoD, extremely high specification unpowered workboat hull, from reserve stocks.

Extremely high build quality and ability to interlock with another hull for increased capacity.

There are no protrusions on the underside of the hull, enabling the unit to operate in shallow or heavily obstructed water without risk of fouling.

Each unit is of open top construction which allows stacking for transport and storage.

The marine grade aluminium hulls have built in buoyancy and feature a self-bailing system that allows any water inside to drain away automatically with a (net) buoyancy of 12.000kg at 30cm freeboard.

Dimensions

Length 7.96m

Width 2.60m

Height 1.17 m

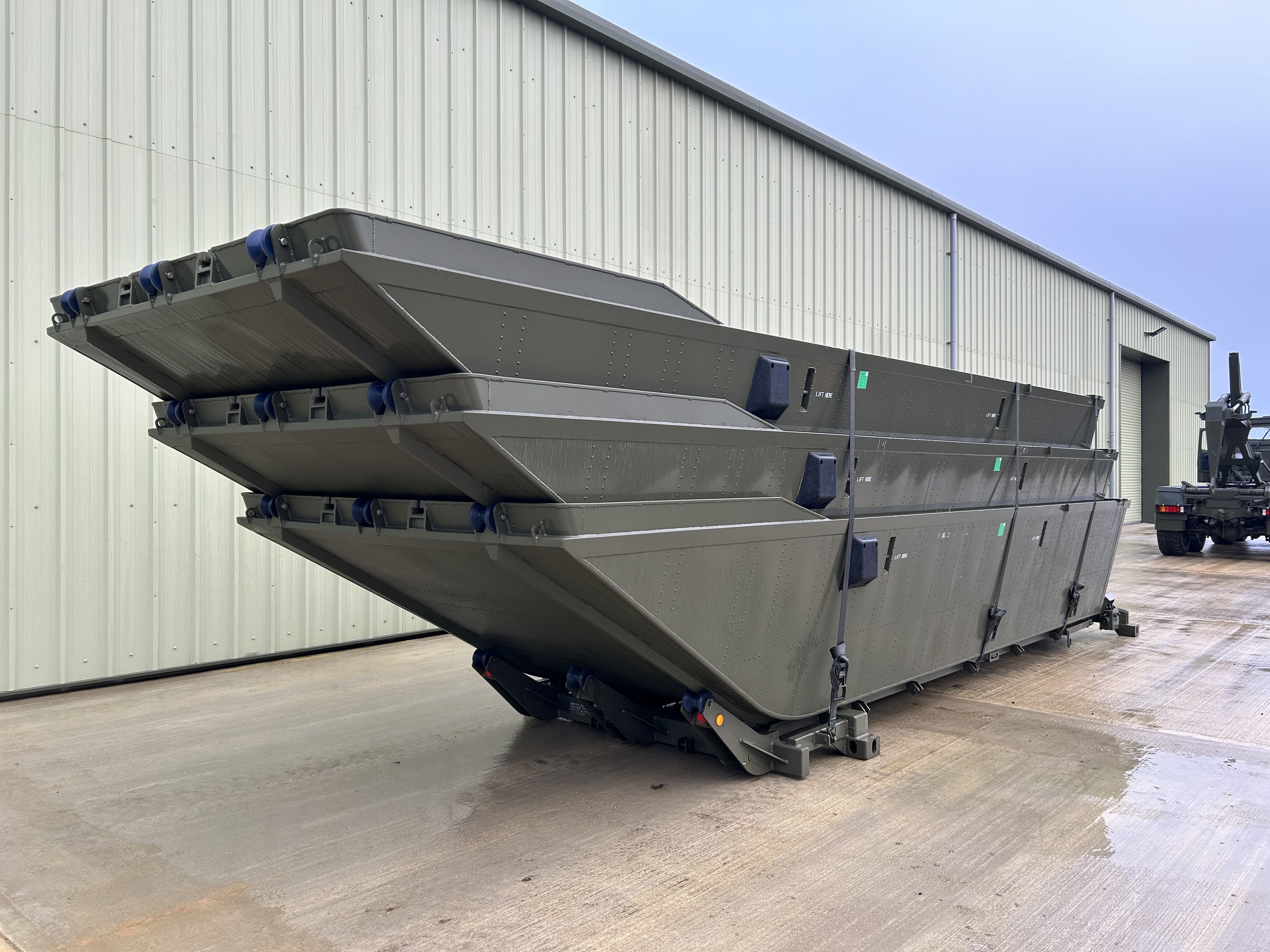

Direct from release with UK MoD, extremely high specification Air Portable Ferry Bridge Pontoon (APFB) workboat sections, from reserve stocks.

The pontoons are designed as components of a rapid deployment military bridge system, with extremely high build quality and ingenuity incorporated in the specification and launching system.

Each stack is fitted to a specially constructed DROPS rack and consists of 1 powered pontoon and 2 unpowered units. These are designed to interlock with another set to build the base of the ferry bridge.

The APFB pontoon is powered by a Schottel waterjet driven by a Deutz air cooled diesel engine.  The engine is mounted in a lightweight frame, secured to the deck by four clamps and can be rapidly removed for either maintenance or complete in field replacement. The Schottel pump jet is mounted by clamps in the deck of the pontoon and can also be rapidly removed for servicing.  There are no protrusions on the underside of the pontoons, enabling the unit to operate in shallow or heavily obstructed water without risk of fouling. Steering is controlled by rotating the jet outlet. The 360-degree movement provides the pontoon with a high level of manoeuvrability.

The powered pontoon is primarily intended for use as a ferry, but they can also be effectively used during the construction of floating bridges, providing a rapid means of placing piers.

Each pontoon is of open top construction which allows stacking for transport and storage. The marine grade aluminium pontoons have built in buoyancy which is adequate floatation for the ferry or bridge structure. They are self-draining with a (net) buoyancy of 12.000kg at 30cm freeboard.

They are stacked on the purpose built rack with three pontoons nested one inside the other 2.7m high on the flatrack. These stacks can be carried on a standard DROPS type truck which can also be used to launch and recover the pontoons using the power and air connections on the vehicle.

Each pontoon includes a self-bailing system that allows any water inside to drain away automatically.

When built, the ferry can operate in 0.8 metres of water and has an operating speed of 3.5 metres per second unloaded and 2.5 metres per second when loaded.

Deployment and Recovery

The APFB Ferry’s six pontoons are stackable (nested) and are carried on two dedicated DROPS flatracks with one powered and two standard pontoons per vehicle.

A built-in release system launches the pontoons sequentially into the water. An integrated winch system within each DROPS flatrack recovers each pontoon after use.

These units are for sale either as a complete unit on a rack, or we can split the stacks and sell either individual powered pontoons or unpowered pontoon sections. Please contact us to discuss your requirements.

One crate of qty 12 No59 MK4 Aircraft Inert Bomb Nose plugs in unissued condition.

Rarely available - UK Sales only.

Heavy item - collection only.

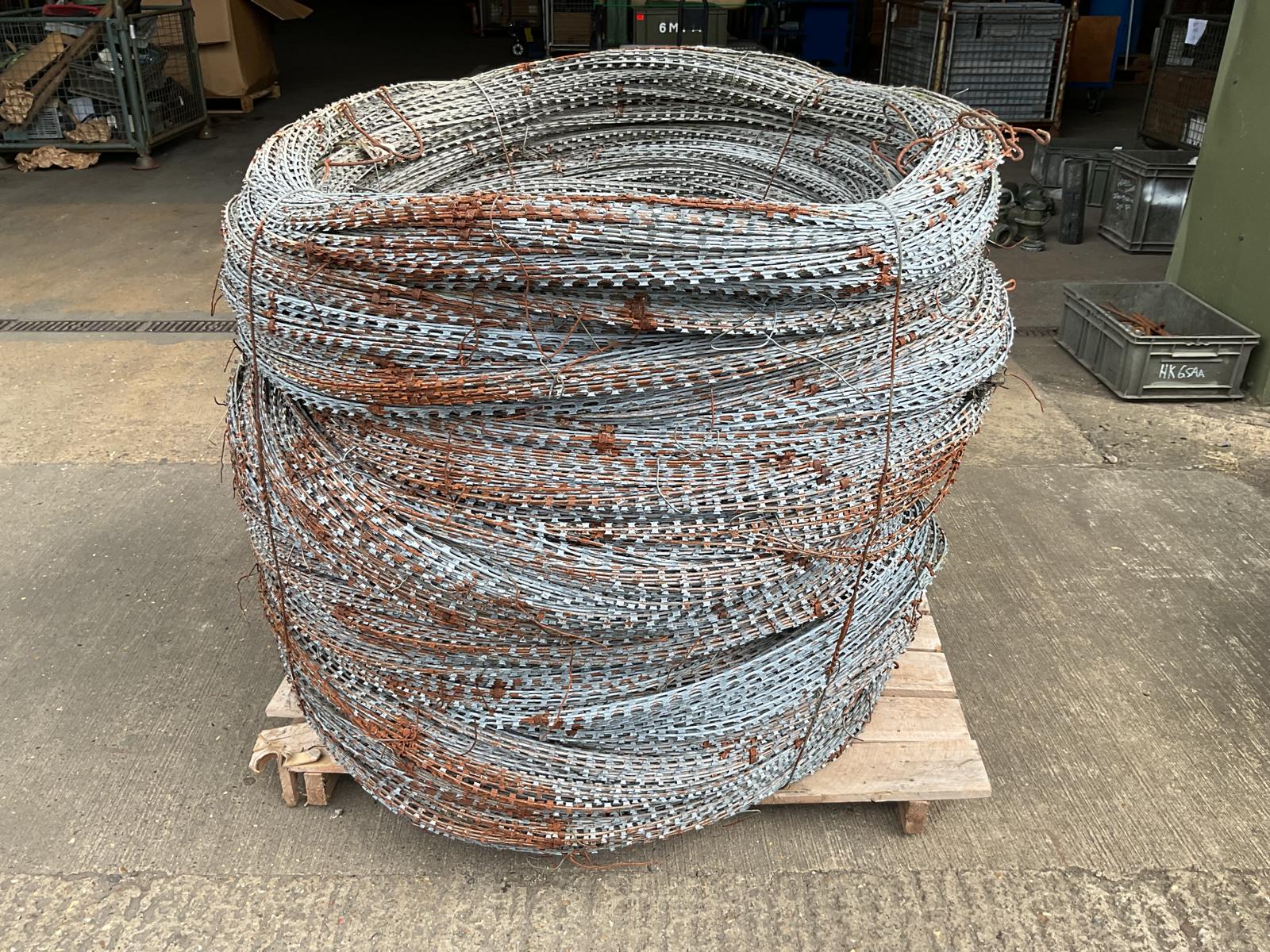

1 x Pallet of Unissued MoD Galvanised Razor Wire

The pallet consists of 40 x Bundles of Galvanised Concertina Razor Wire.

Each bundle when deployed coiled is 10m length x 1m Diameter.

Approx. 400m total coiled length.

UK sales only, sold ex works – collection only.

Direct from the UK MoD, Heavy Duty Military Ground Anchor Recovery Kit.

This is a heavy-duty ground anchor kit which has been engineered to a high military specification, for vehicle recovery of vehicles from Land Rovers and Heavy Trucks to Armoured Vehicles.

Kit consists of:

1 x Anchor Plate
9 x 3ft Ground Pins/Spikes (Spare pin for removal of pins from earth)

Approx. Specification/Dimensions:

Anchor Plate Size (Approx.): 940 x 140mm. 12mm Thick Steel

Anchor Plate Weight: 12.8kg

Pins/Stakes Size (Approx.): 965 x 25mm Diameter

Pin/Stake Weight (Each): 3.5kg each

Stock Reference WGA

Please note - these are UK sales only and collection only from NG33 5LY.

MoD Heavy Duty Cage Pallet, these feature well braced sheet steel base, fixed tubular corner posts and supplied with set of four removable mesh gates.

Stackable up to 6 units high, made with tubular heavy duty construction, locating feet and removeable mesh sides that are interchangeable with other stillages.

Quantity 100 units in stock, available in various conditions. Please contact us to discuss pricing.

This popular unit is now in rarely available and in short supply second hand.

Pallet dimensions overall

Width 1015
Depth 1220
Height 1000mm
Tare with sides 96kg
Tare without sides 61kg
Max Capacity to stack up to 6 high 1814kg per stillage.

Stock Reference WHDCP

Please note - these units are collection only.
