New and unused 2024 CAT 424 Backhoe Loader 4WD, in stock and available to buy now.
It features:

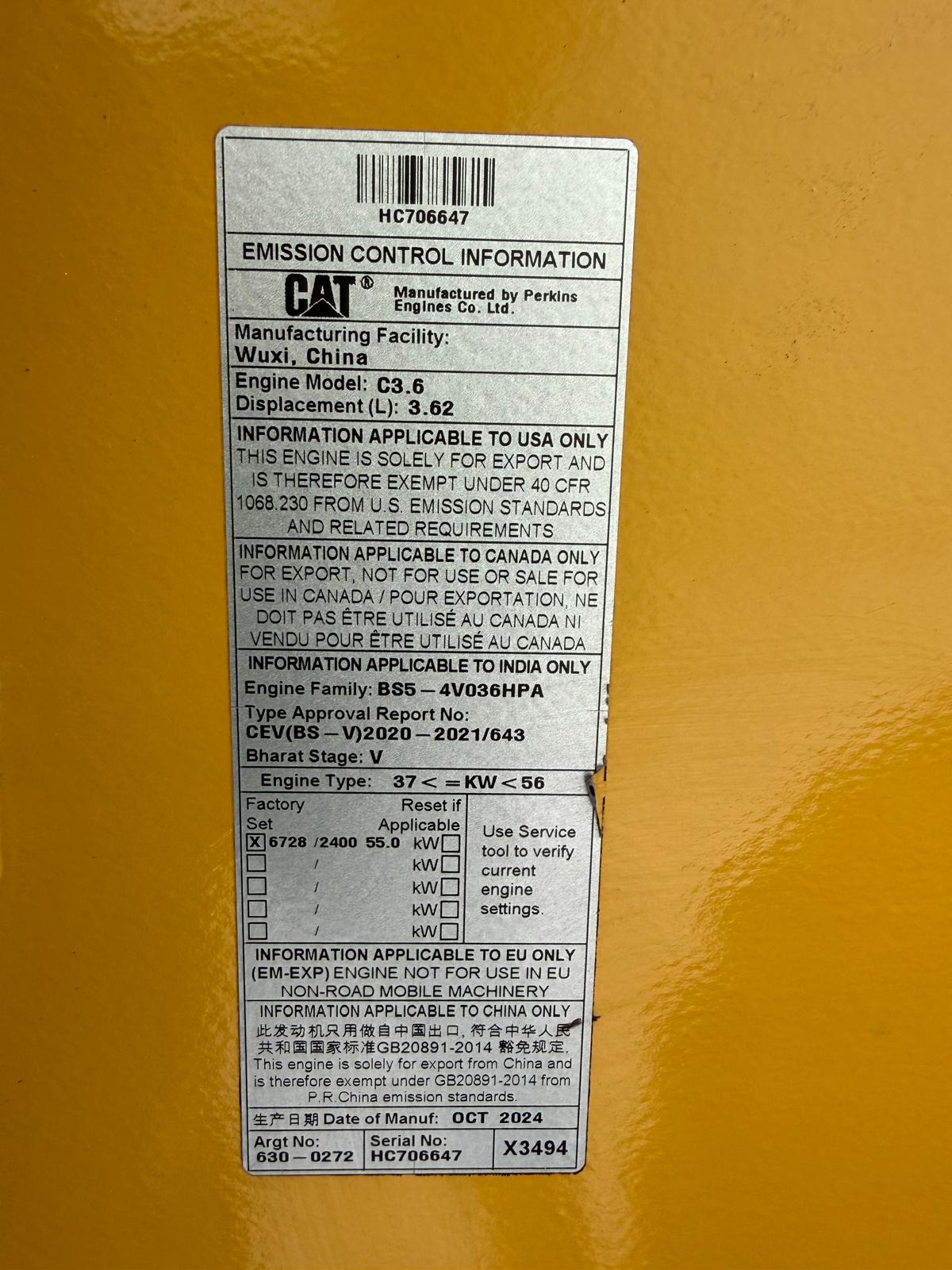

CAT C3.6 55kW (75hp) Electronic Turbo Intercooled Diesel Engine BS-V compliant

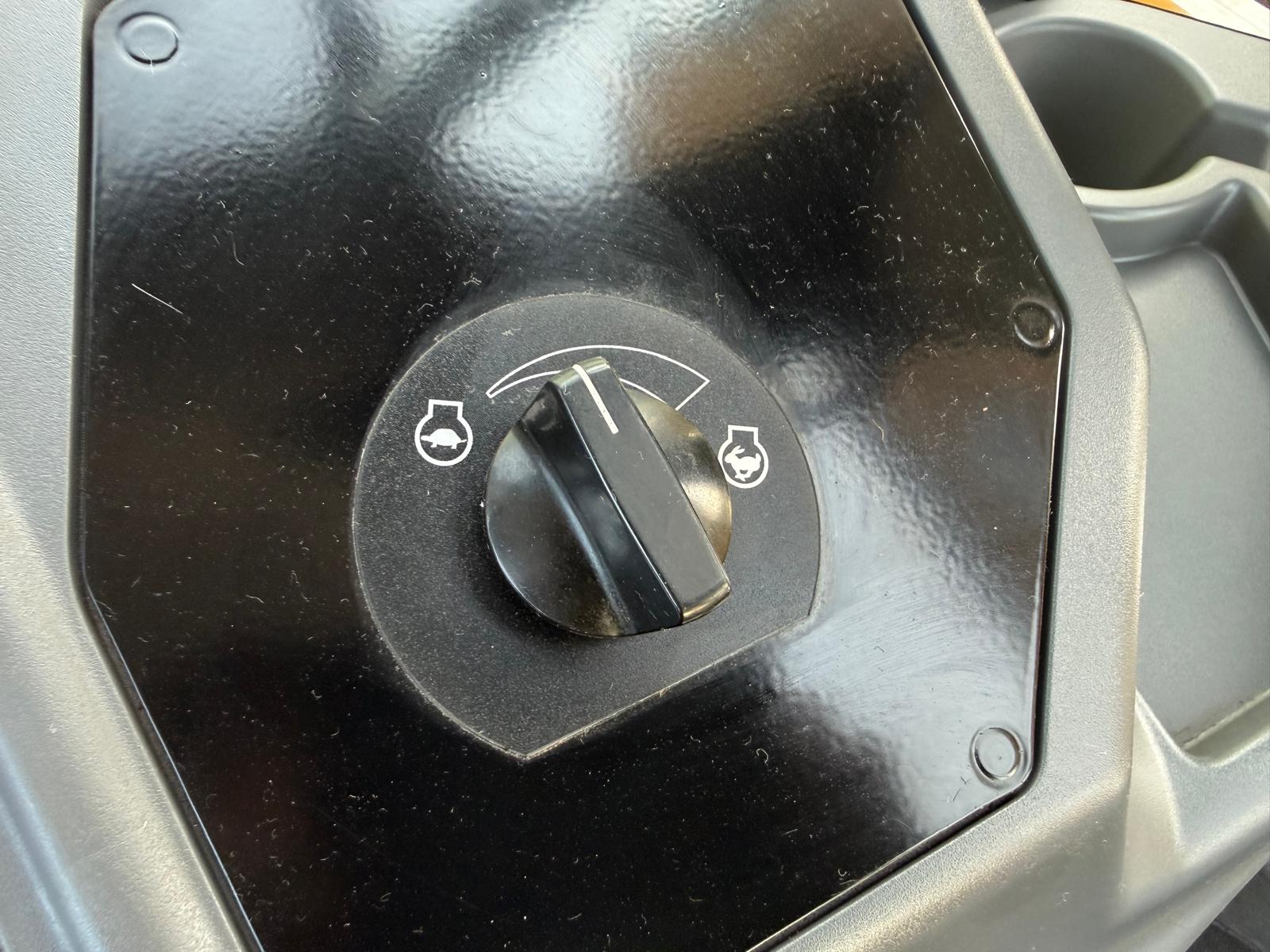

Eco Mode

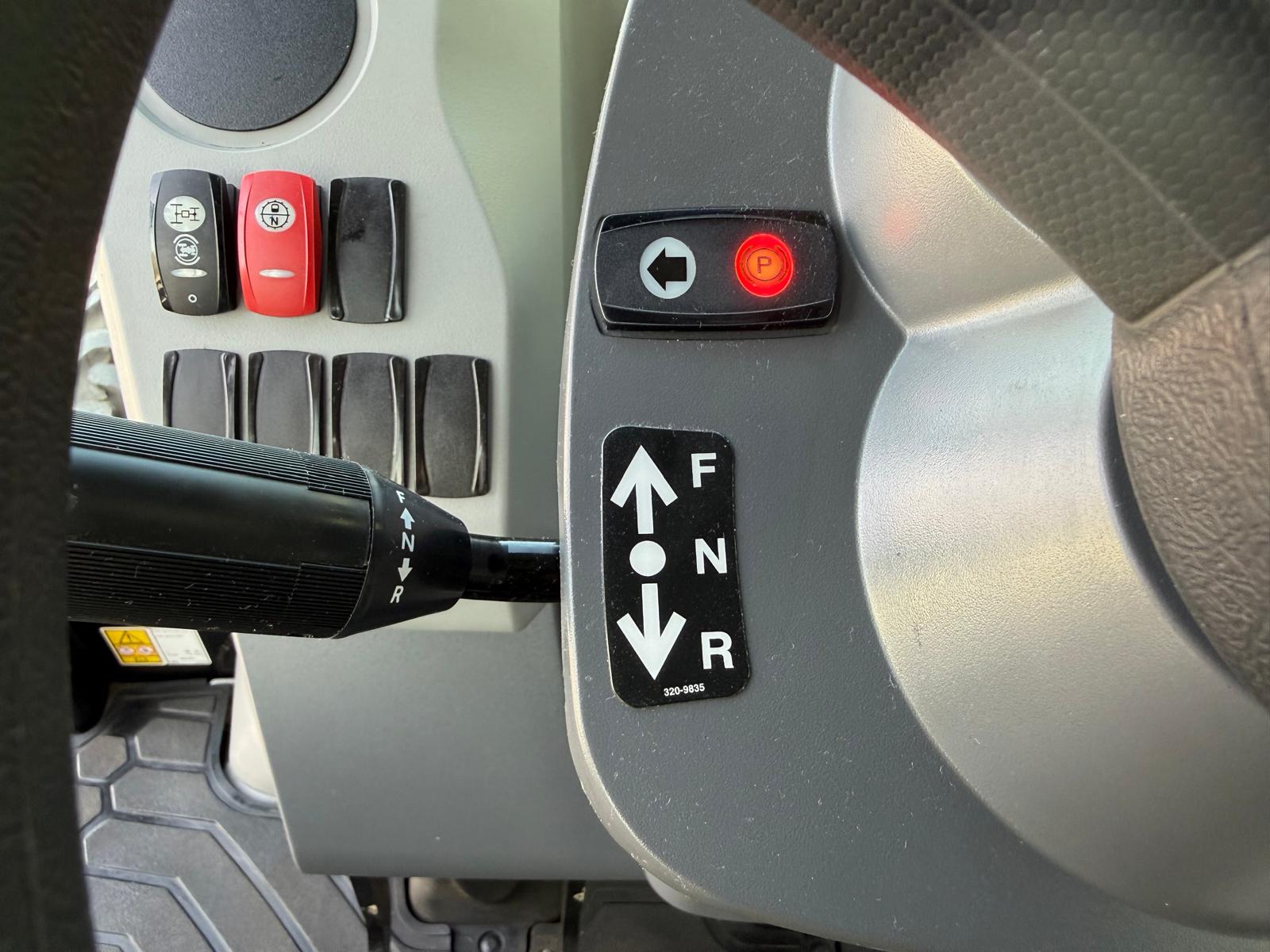

Power-Shift 4WD 4 speed Transmission
Hydrostatic Double Acting Power Steering
Closed centre hydraulics with variable flow axial piston pump 245 bar (132l/min)
Piped for 3rd service to run hammer or tools
GP Loader Bucket 1.05 m3
Backhoe Bucket 901mm (0.3 m3)

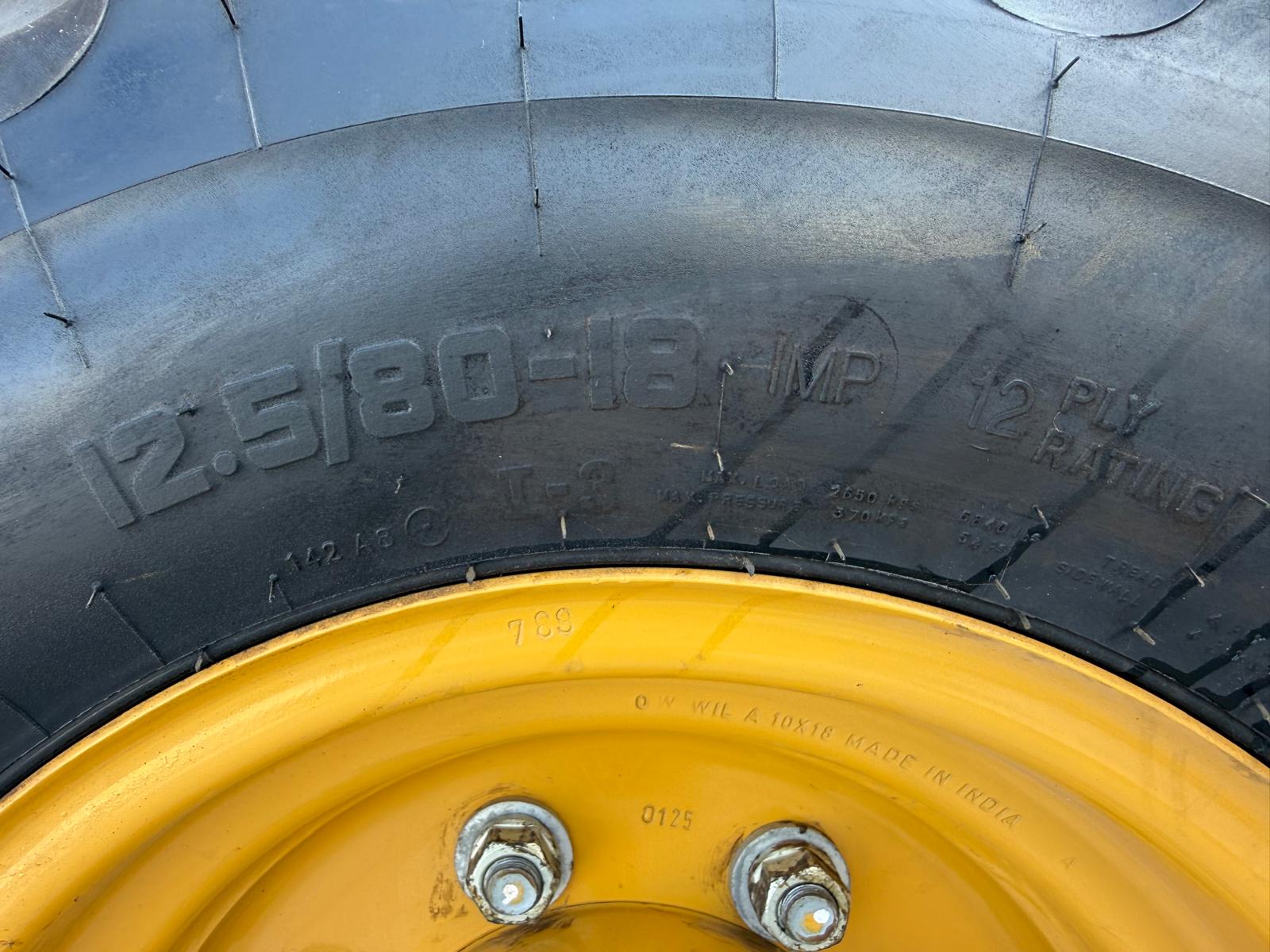

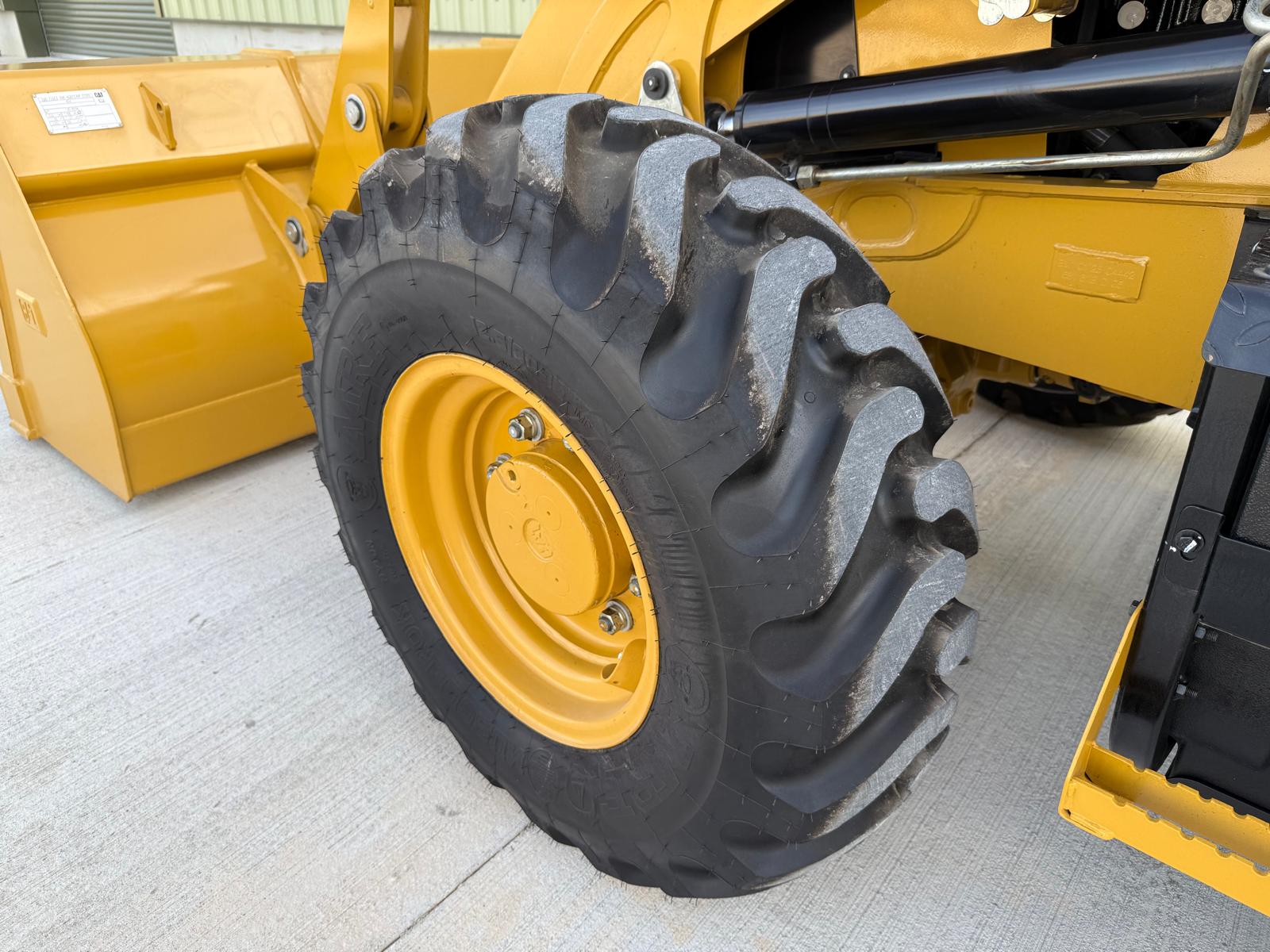

Front tyres: 12.5/80 R18

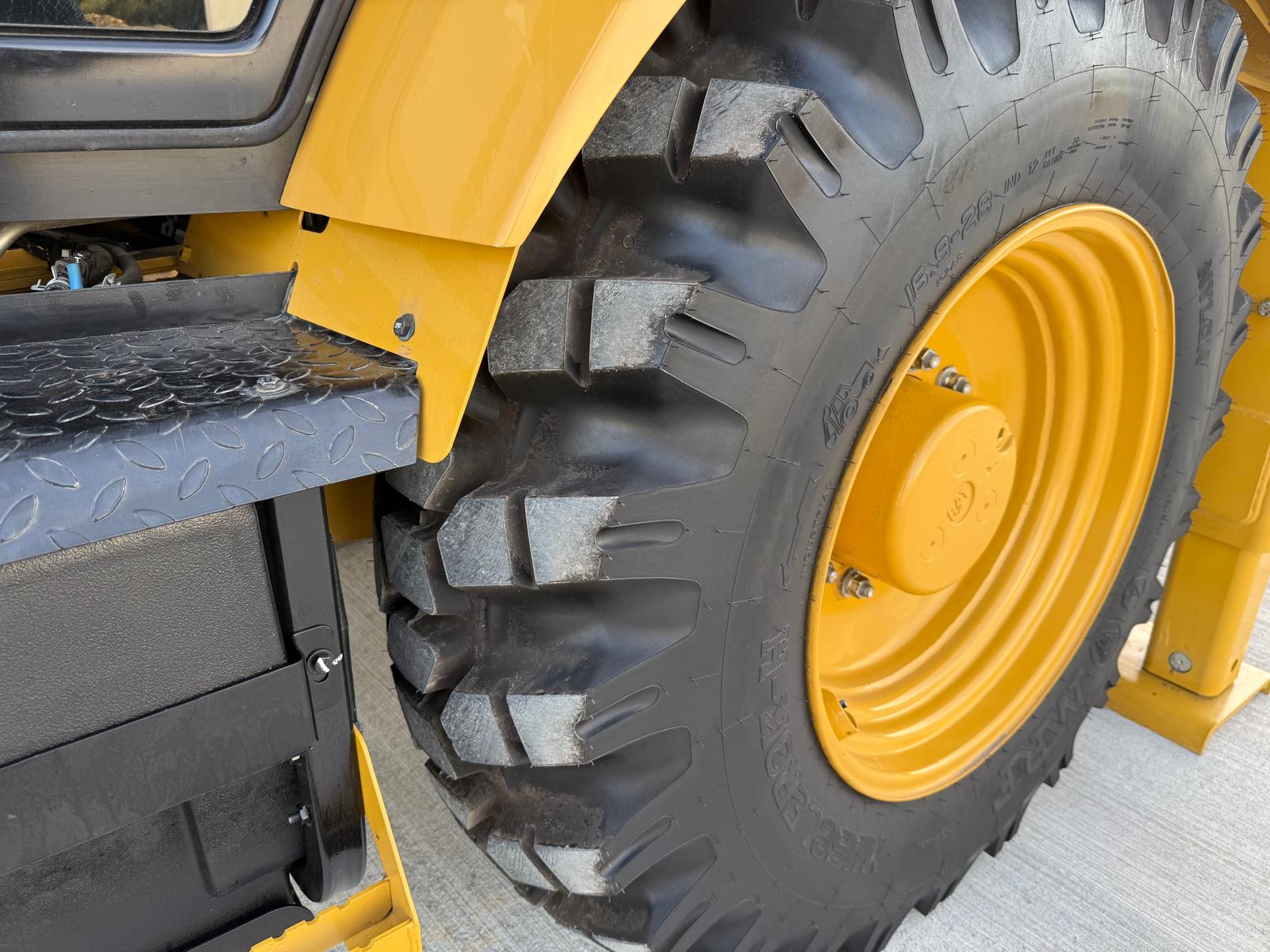

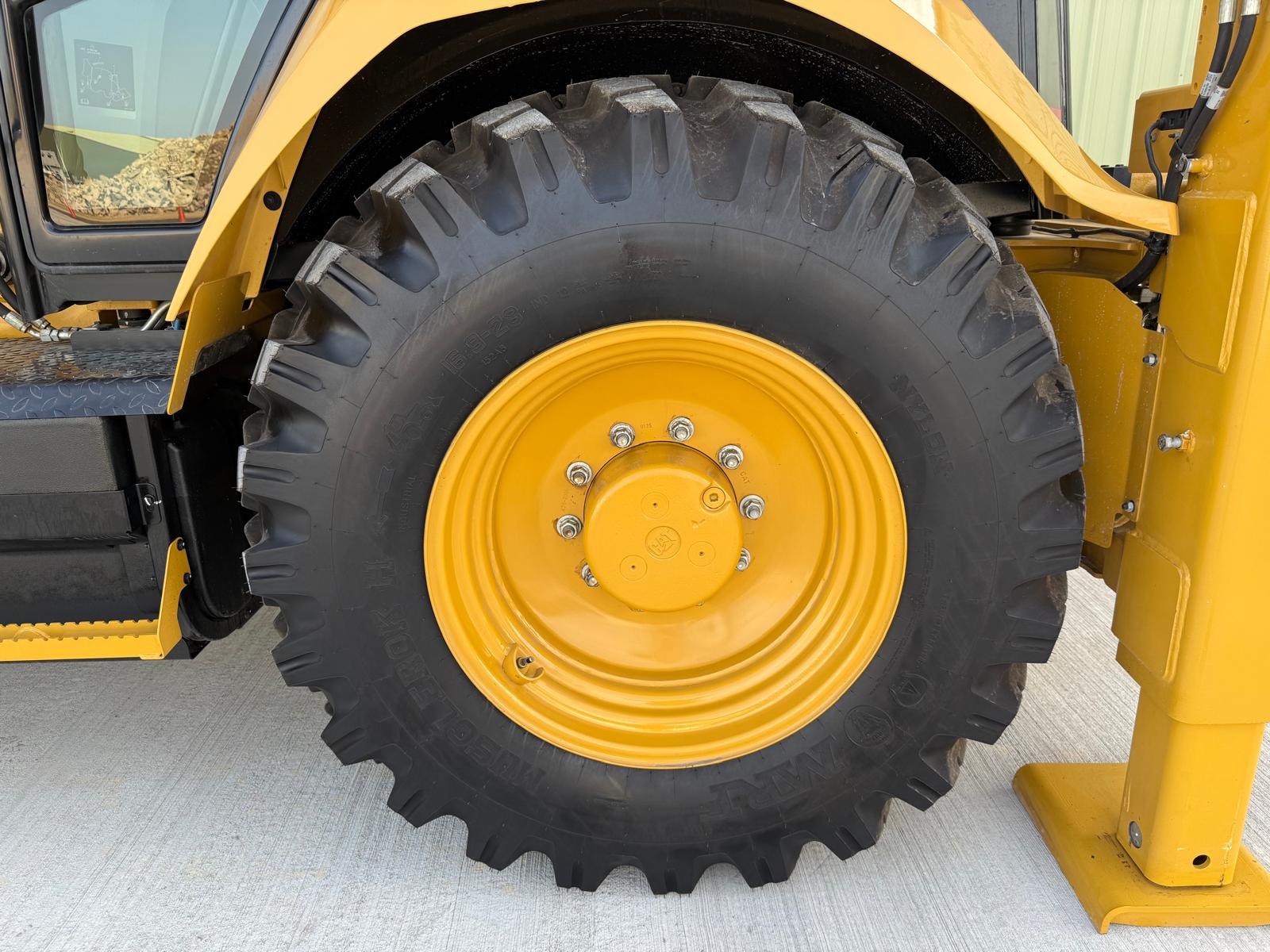

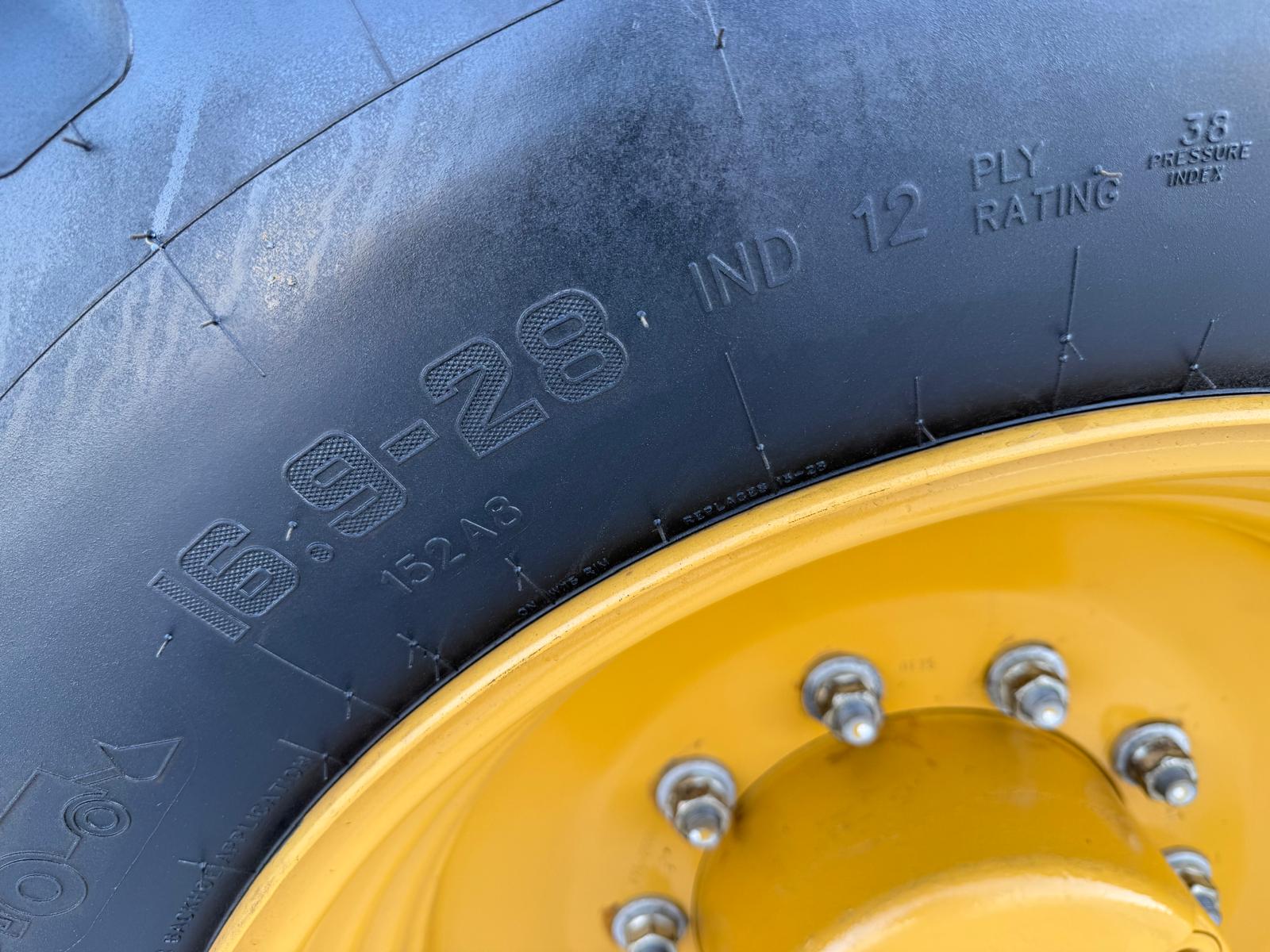

Rear Tyres: 16.9 R28

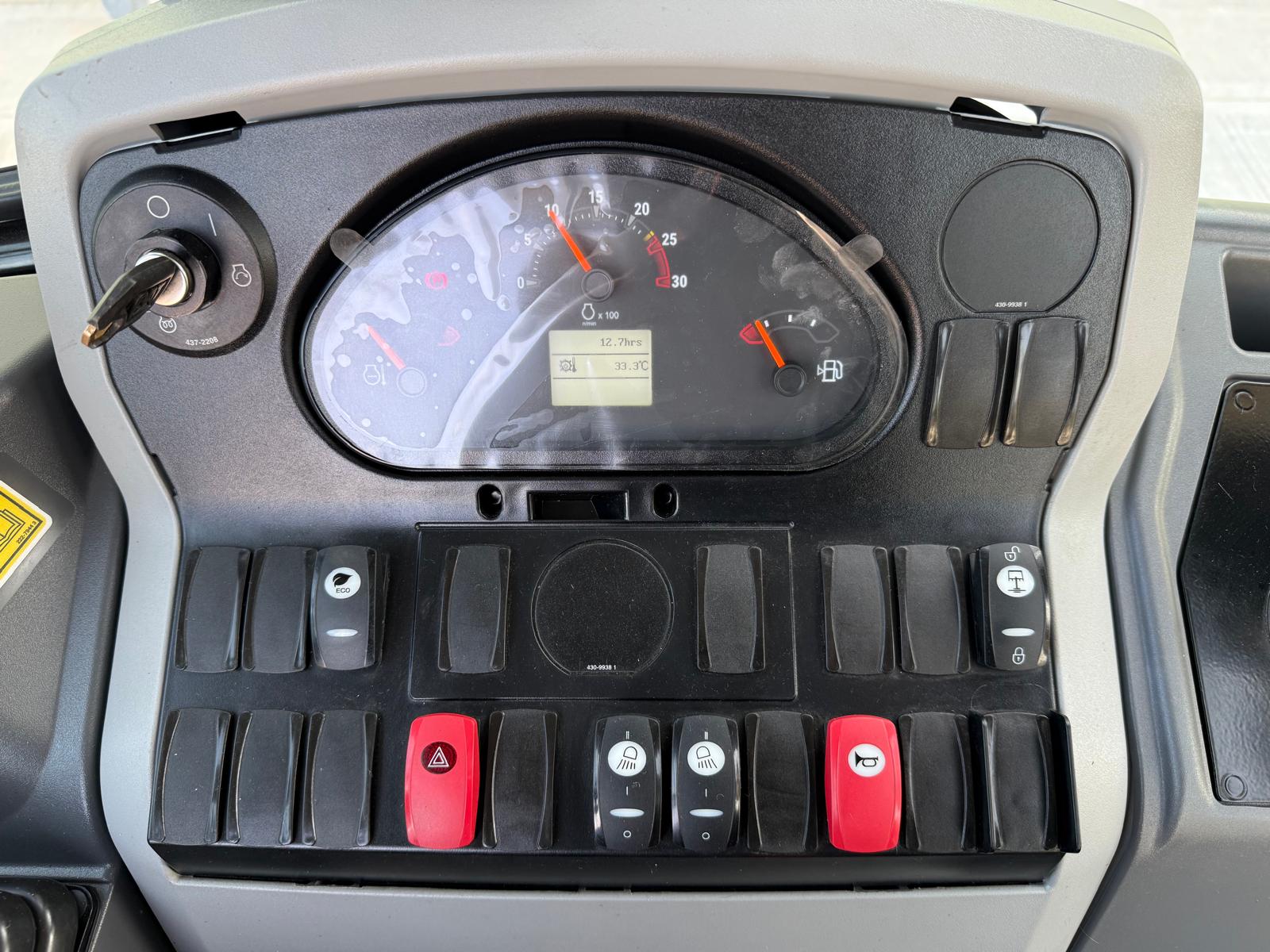

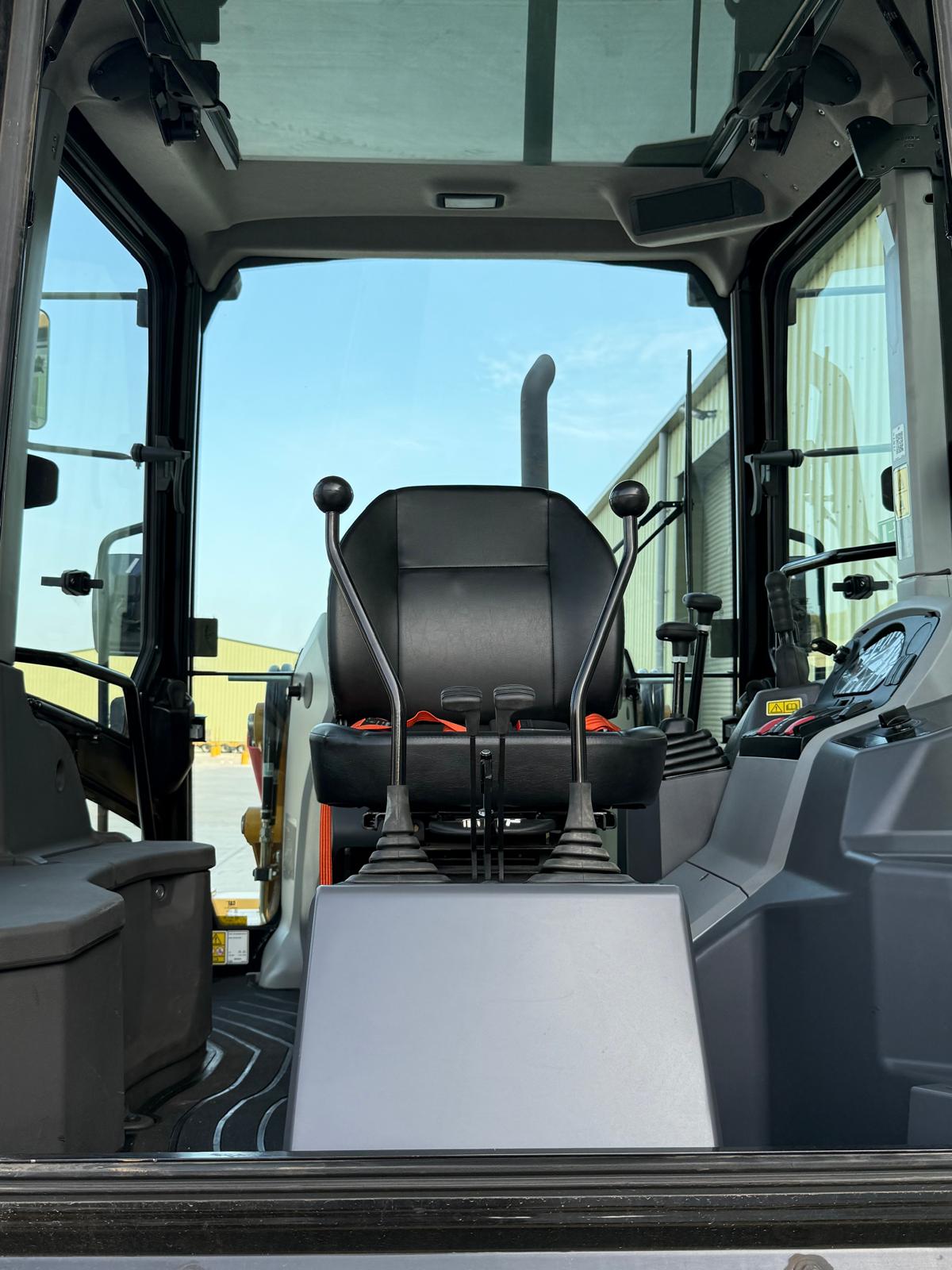

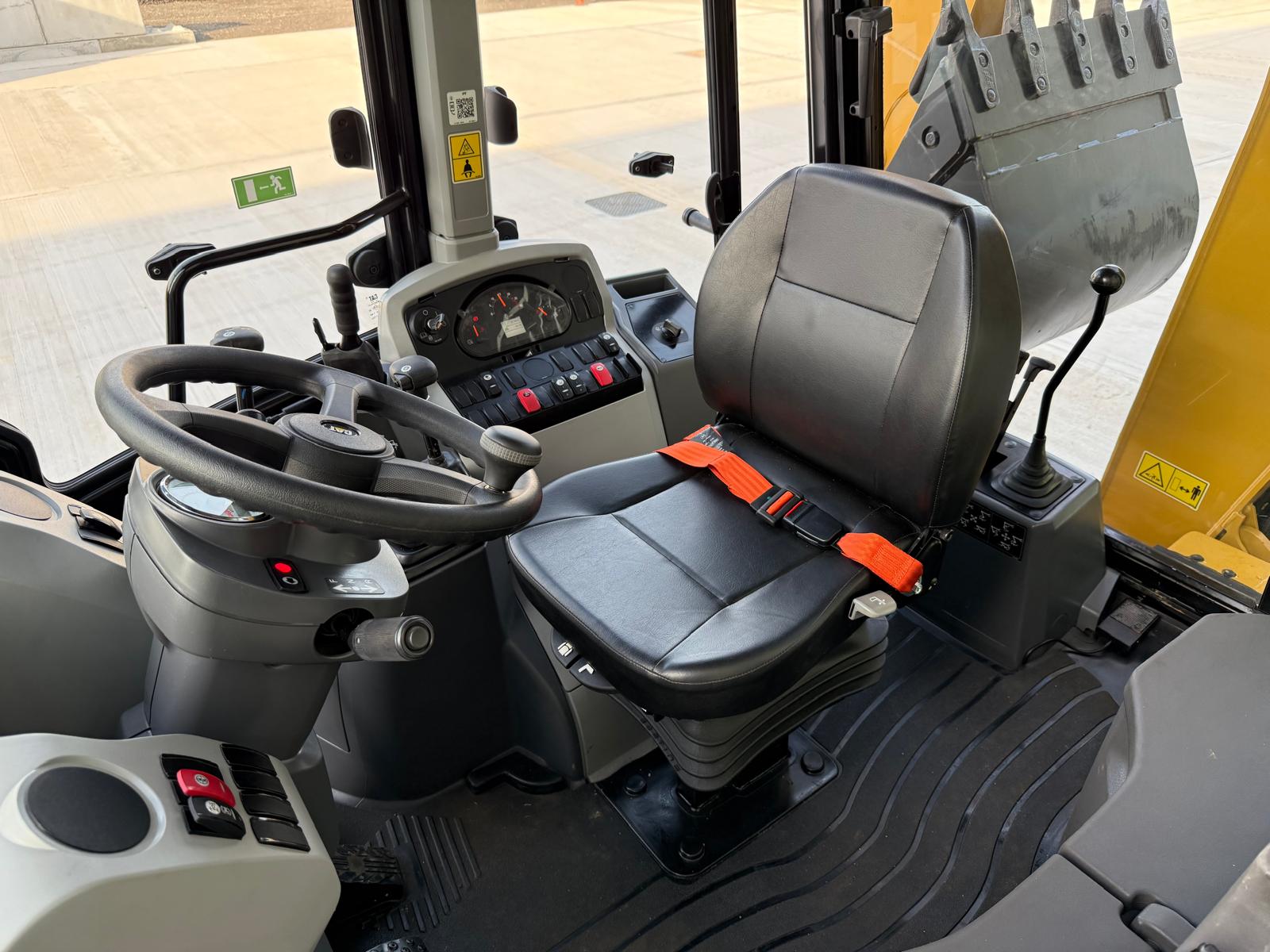

ROPS FOPS Cab with excellent all-around visibility with

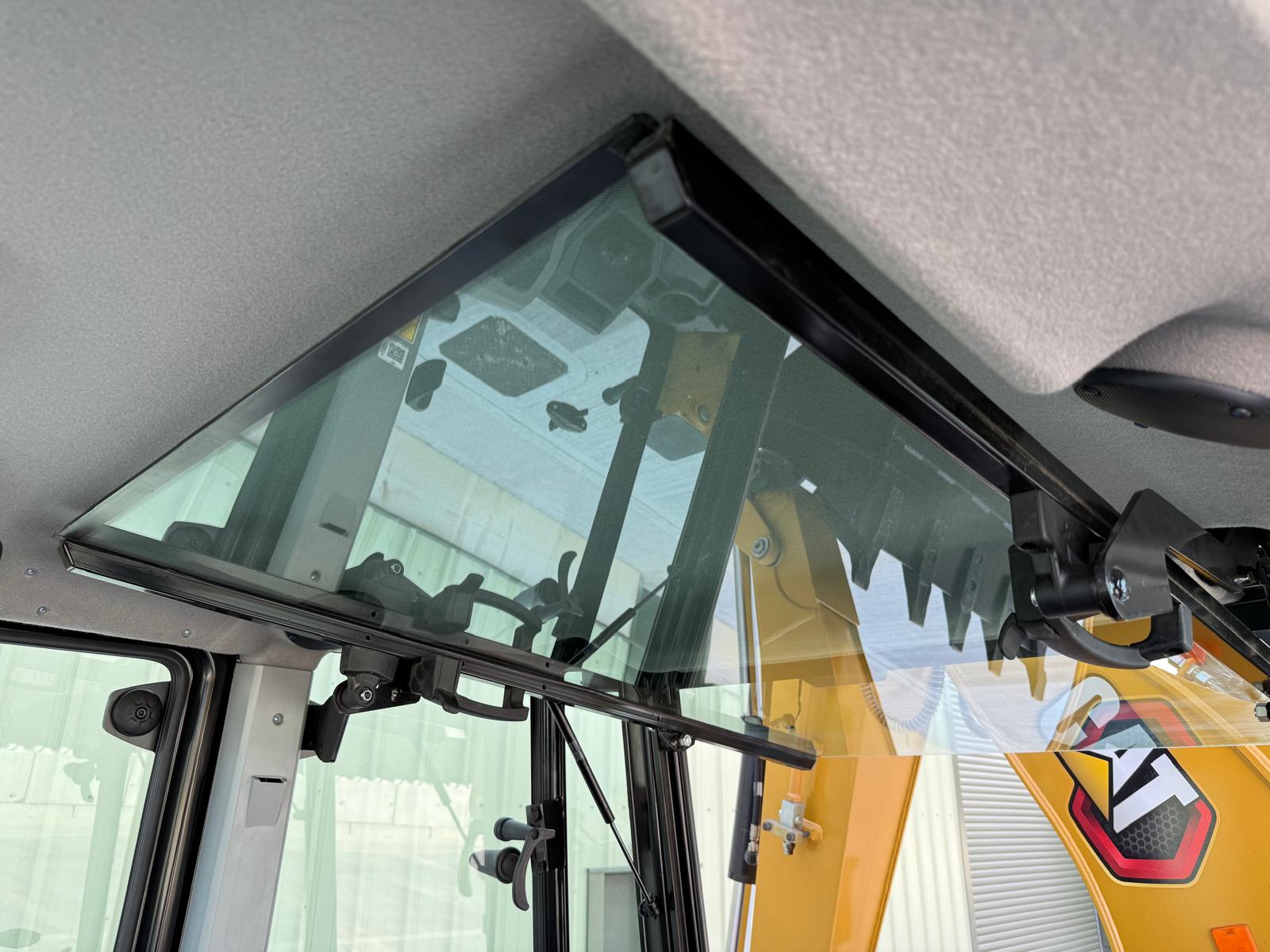

suspension seat, clear information cluster and ergonomic controls. Opening side windows, door windows and large opening rear window.
Max Road Speed 40kmph
Approx. operating weight 8045kg
Approx. Dims in travelling configuration:
Length: 5.68m
Width: 2.24m
Height: 5.73m
Cab Height: 2.99m
Operating weight 8,045 kg
Approx. Dims for transport:
Machine transportation length 5.68m
Machine width 2.35m
Machine transportation height 3.78m
Loader Dimensions and Performance
Bucket capacity 1.0 m3
Loader lift force 52.7 kN
Loader tilt force 59.2 kN
Dump height 2,766 mm
Dump angle 46°

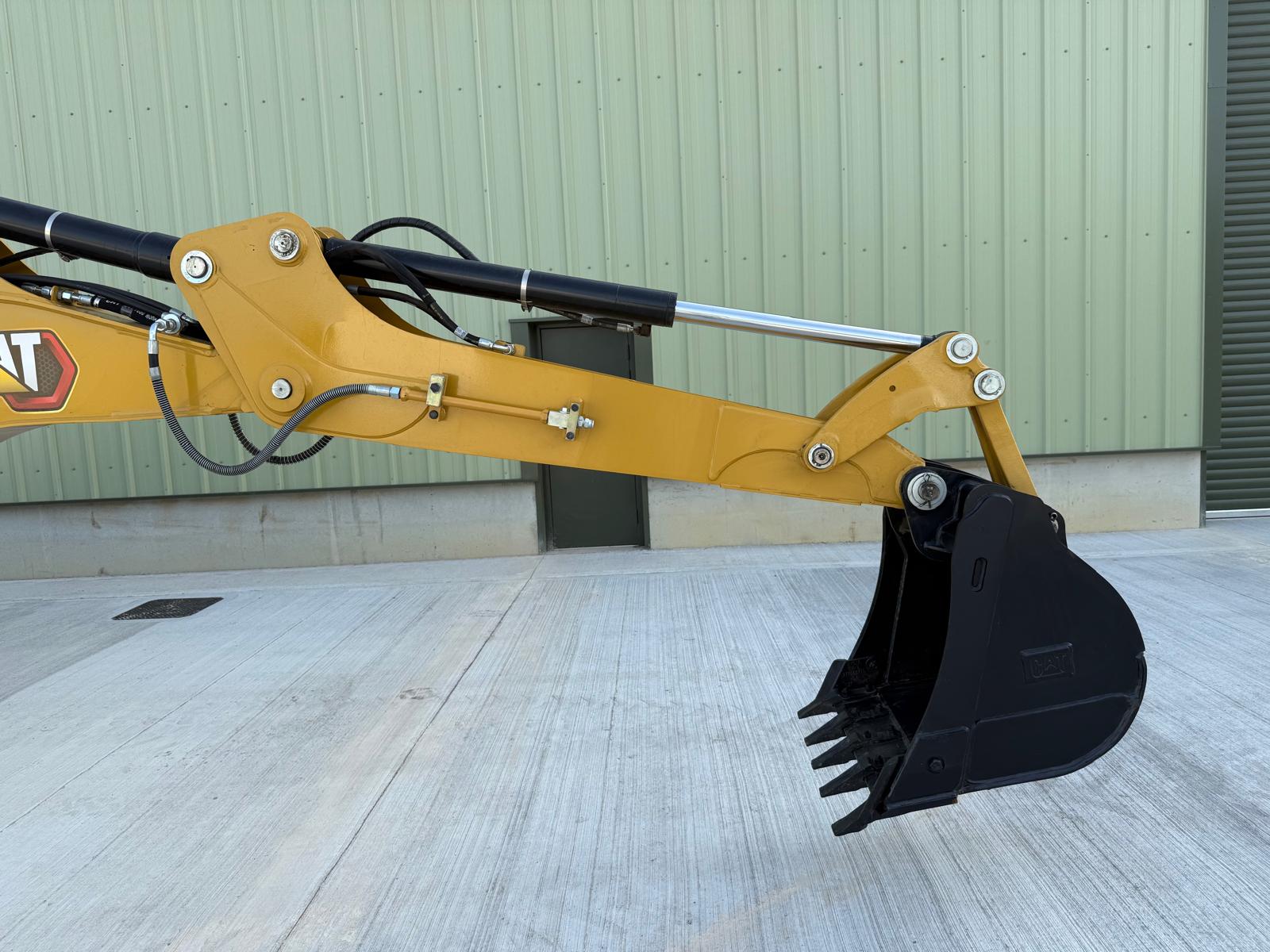

Backhoe Dimensions and Performance
Dig depth manufacturer’s maximum 4,707 mm
Loading height 3,934 mm
Reach from swing pivot at ground 5,603 mm
Bucket dig force 56.3 kN
Stick force 35.0 kN
Bucket rotation 205°
